Valdiklis NZXT

Finding the right mix of cooling and noise reduction can be complex and time-consuming, even for experienced builders. Grid+ V3 provides everything you need to make it easy. Grid+ V3 provides everything you need to make the easy. Using CAM, you can choose a preset fan profile, create your own, or use Adaptive Noise Reduction to automatically create a profile matched precisely to your system.

CAM-powered 6-channel digital fan controller with up to 5 watts per channel

Automatically detects 3-pin or 4-pin PWM fans

0dB option shuts fans off completely for near-silent operation

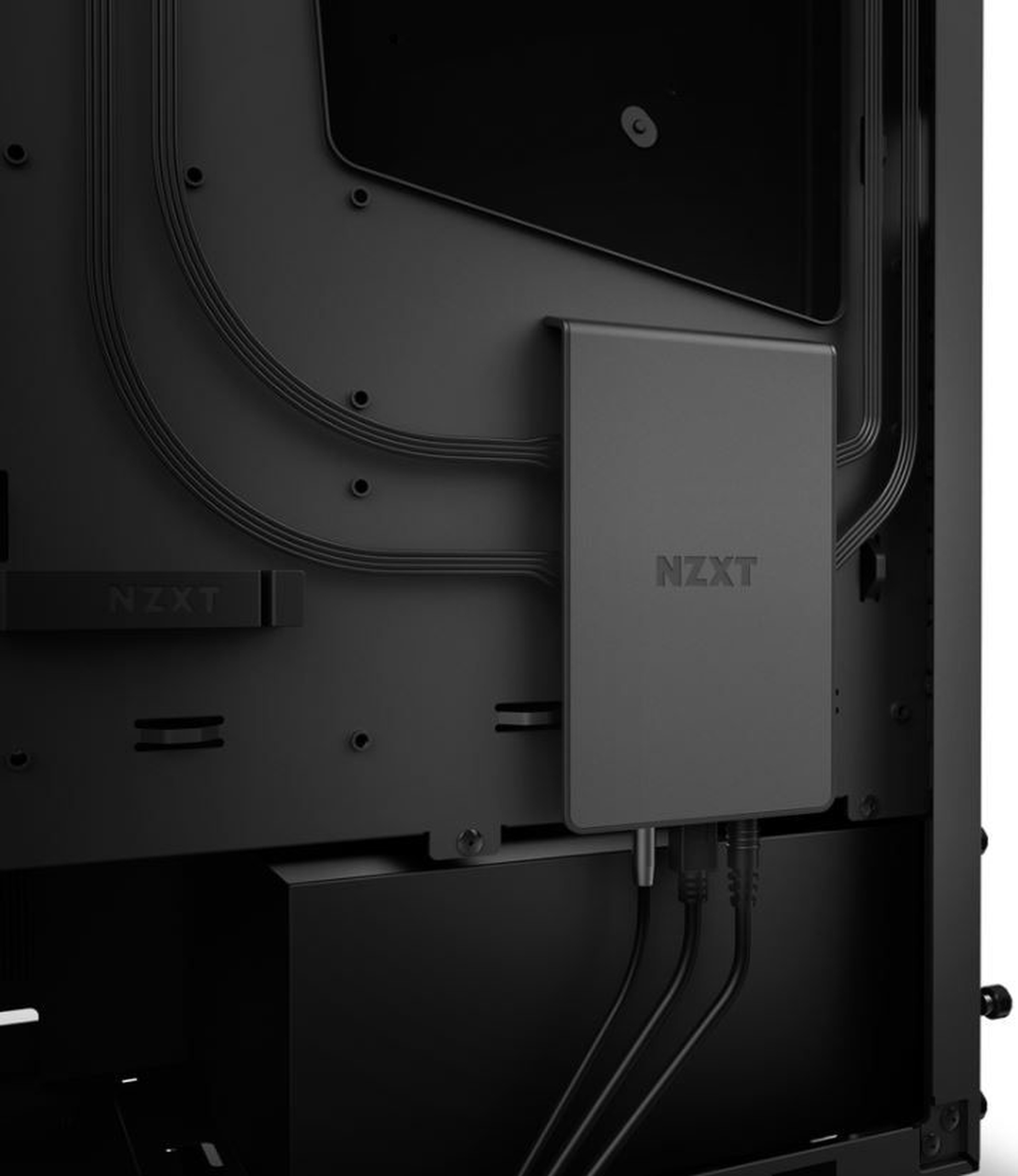

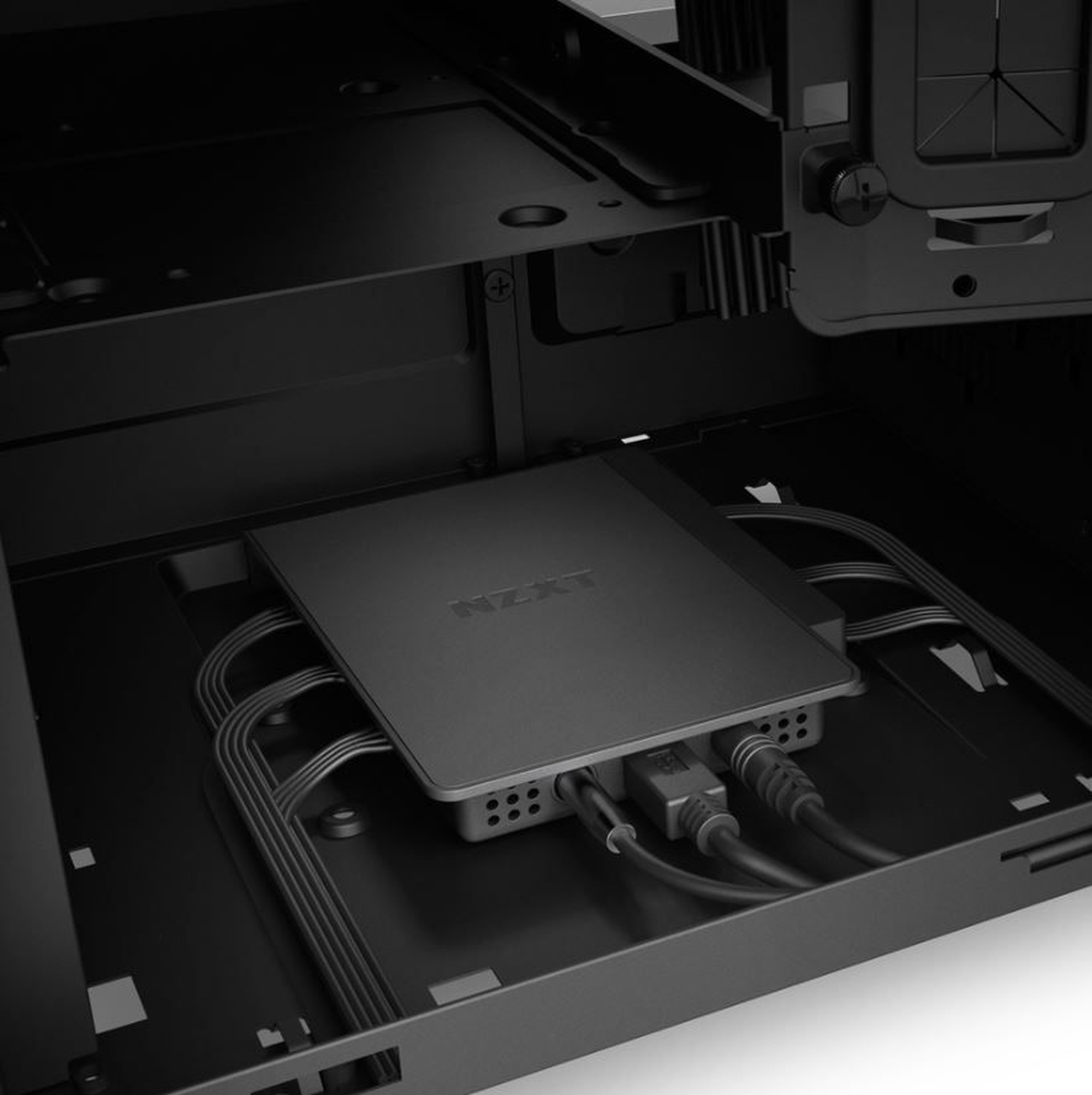

Slim profile and magnetic back for simple installation

The optional Adaptive Noise Reduction profile measures your system to create a custom fan curve that can reduce fan noise up to 40%

Dimensions 125 x 78 x 15 mm (GRID+ Unit)

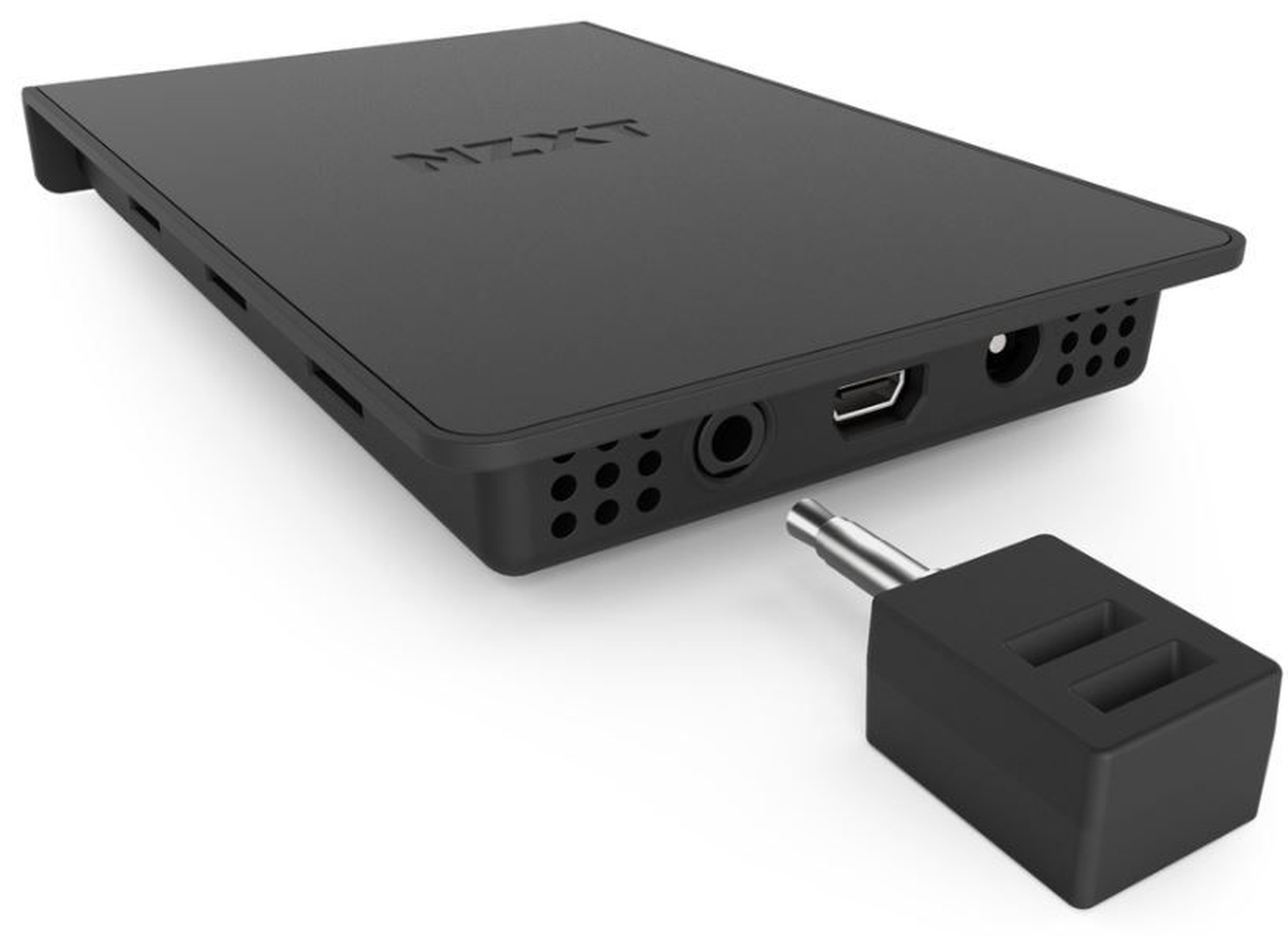

35 x 15 x 10 mm (Noise Detection Module)

Material(s) Steel, Plastic, PCB

Weight 147g

Mounting Magnet or 3M Dual Lock

Control Method Software via CAM

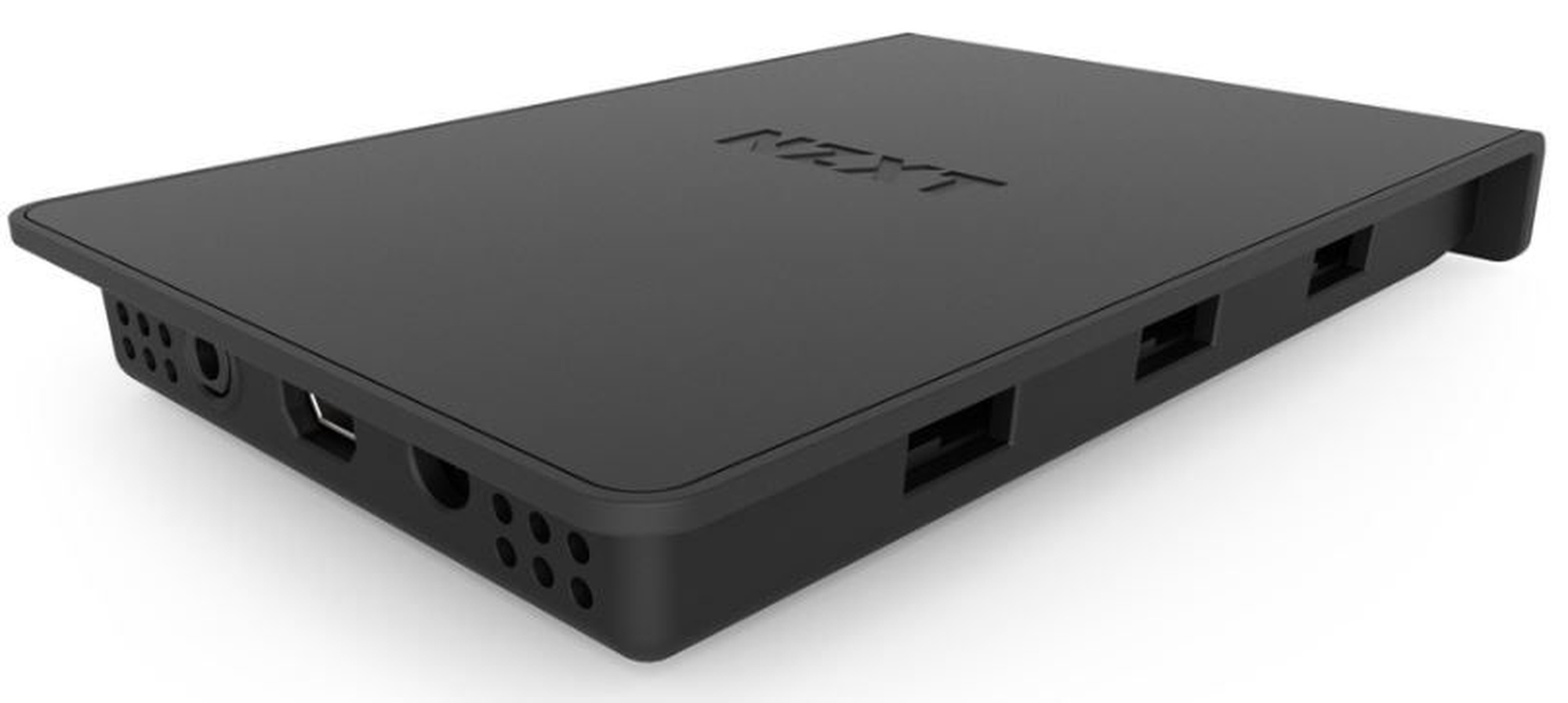

Fan Channel Quantity 6

Fan Support 3-pin or 4-pin PWM

Output Channel Voltage 5W Max

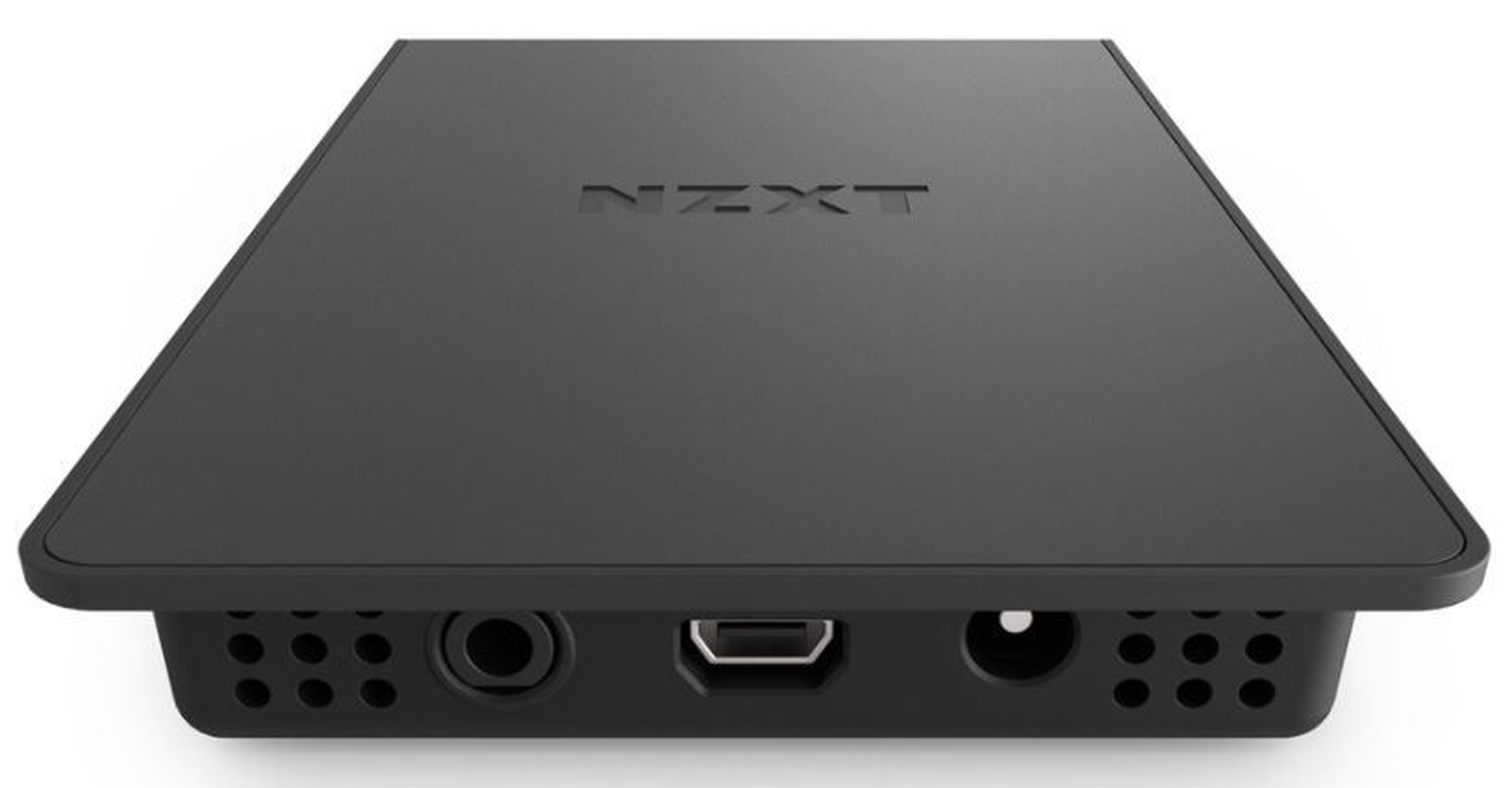

Input Connector 12V with 4-pin Molex

3.5mm Audio Jack for Noise Detection Module

Micro-USB

Included Accessories 1 x Noise Detection Module

1 x 450mm Extension Cable for Noise Detection Module

1 x 600mm Micro-USB cable

1 x Molex Power Cable

2 x 1 to 3 Fan Splitter Cable

5 x 100mm Zip Tie

2 x 40x13mm 3M Velcro Tape

1 x 15x13mm 3M Velcro Tape
